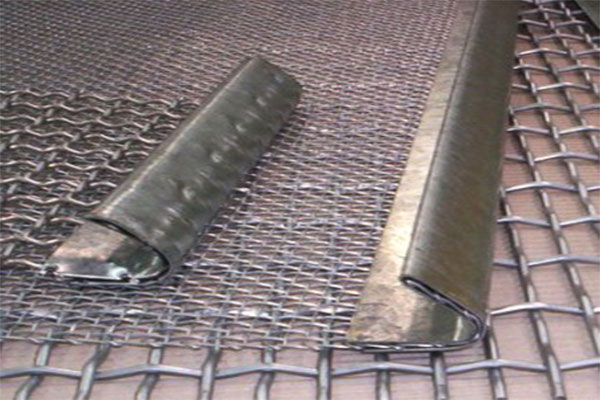

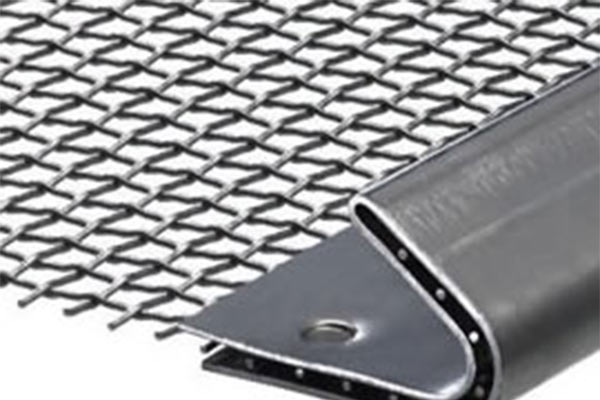

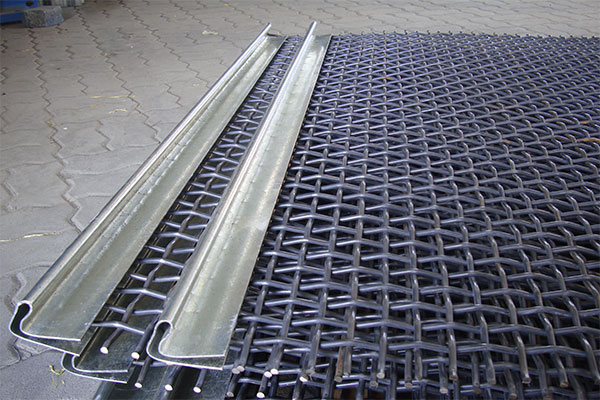

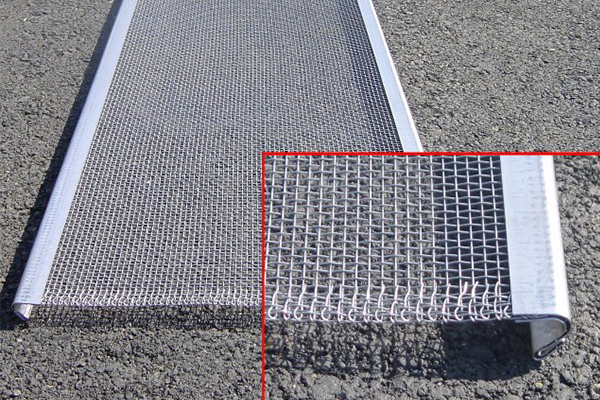

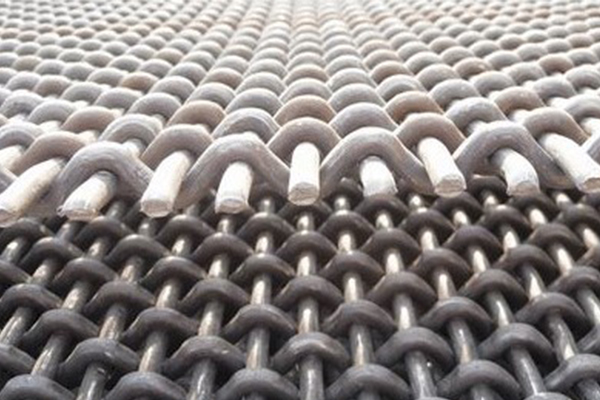

HEAVY DUTY SCREEN WIRE MESH (IS : 1570)
These are heavy woven meshes and can withstand high speed screening. They are used to sieve heavy material without stretching of mesh due to vibration. It can handle & sieve large quantities in short time. They are rnade from 2mm opening to 100mm opening, from 1 mm wire dia to 20mm wire rods, from M.S. spring steel, stainless steel etc. to a maximum width of 8 feet with panelling.
Micro Mesh heavy duty wire mesh vibrating screens are specially manufactured to withstand extremely rugged operating conditioning in scalping, sizing or processing of heavy abrasive materials such as ores, crushed stones, sand gravel, metallic or non-metallic minerals, coal slaq, etc .. They are available in different material, and in extensive size and diameters to meet every specific requirement.
Applications:
Vibrating screens, Stone crusher screens, Grading and Sieving of ores, coal etc., Mining Screens, Quarrying Screens
Chart:
| Common Aperture Width (mm) |
General Wire Diameter (mm) |
| 12x12 | 6.0 |
| 16x16 | 6.0 |
| 20x20 | 8.0 |
| 22x22 | 8.0 |
| 25x25 | 10.0 |
| 40x40 | 12.0 |
| 50x50 | 12.0 |
