CRIMPED WOVEN WIRE MESH - (IS: 1568)

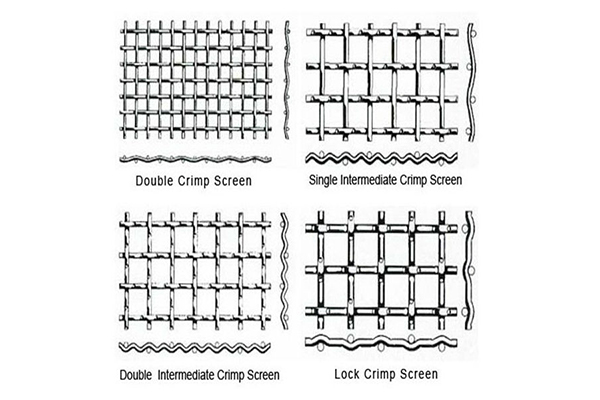

Manufactured in Stainless Steel of all grades like 304, 304L, 316, 316L, 321, 310 etc, Hot Dipped Galvanized Iron, Brass, Copper, Aluminium, Phosphorus Bronze, Spring Steel, PVC, Monel, Nickel, Incoloy, Tungsten & other alloys. Extensively used for different purposes like sieving, filtering, crushers, construction (cement reinforcement), mosquito protection, trays for kitchen equipment, gas godown, garnet sieving and etc. Made from 2" opening to 2800 holes per linear inch or 5 microns. Width ranging from 1 feet width to 14 feet high! and available in any running length. Wire dia ranges from 0.015mm to 15mm. This is also made in double crimped for sustaining heavy weights. Hollander weave or twill weave meshes for precision filtering. Most importantly even Rectangular dimension meshes can also be made.

Applications:   Filters elements,Electromagnetic shielding,Enhancing conductivity (renewable energy),Bolting cloth for screen printing,Cement Industry,Stone crushers,Coal feeders,Component trays,Machinery Belt guards,Sorting and grading of minerals and sands,Agricultural sieves for grain and sand,Food protection covers,Tea and coffee sieves,Chemical and Pharmaceutical sieving,Fine filters and spray sieves,Air filters of combustion engines,Extruder screens for polymer melts,Spark arrestor screens,Fly screens and Mosquito screens,Filters elements,Bolting cloth for screen printing,Dust removing screens,Fine sieving of powders and liquids,Fuel filters of combustion engines,Extruder screens for Polymer melts,Suction strainers,Electro magnetic shielding / RF applications,Fuel Cells (Solid Oxide Fuel Cell Stack),Thermal Batteries,Architectural applications

Aperture:   25 Microns to 12mm

Types of woven wire mesh:

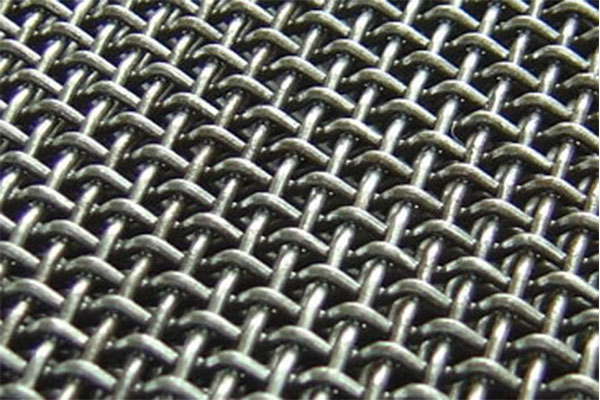

• 1.Twill


Aperture: 2mm and finer

Applications : Filter elements,Hydraulic filtration,Aerospace filter components,Filter for use in Centrifuges,Shielding applications,Fuel filtration

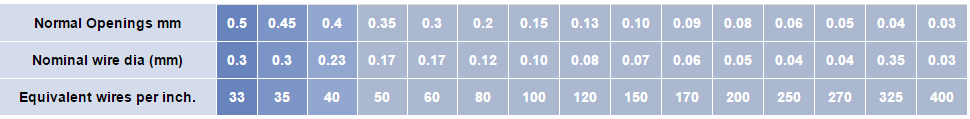

• 2.FINE

Aperture: 0.3mm and finer Materials:Stainless Steel, Phosphor Bronze, Brass, Copper
Applications : Filters elements,Bolting cloth for screen printing,Dust removing screens,Fine sieving of powders and liquids.,Chemical and Pharmaceutical sieving,Fuel filters of combustion engines,Extruder screens for Polymer melts,Suction strainers,Electro magnetic shielding / RF applications,Fuel Cells (Solid Oxide Fuel Cell Stack),Thermal Batteries

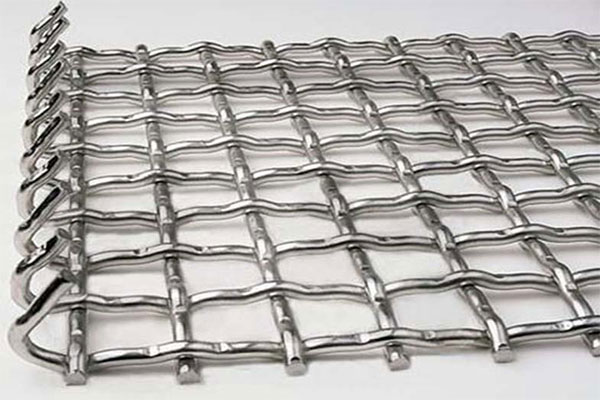

• 3.COARSE

Aperture: 4mm and greater, square or rectangular
Applications : Cement Industry,Stone crushers,Coal feeders Component trays,Machinery Belt guards
Common opening – wire dia combinations but not limited to below

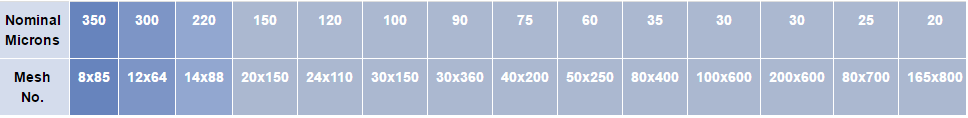

• 4.DUTCH WOVEN

Aperture: 350 microns and finer
Applications : Filter elements, Leaf filter, Extruder screen for polymer melts, Filter for use in Centrifuges, Fluid bed driers

• 5.DUTCH TWILL WOVEN MESH


Aperture: 350 microns and finer

Applications : Filter elements, Leaf filter, Extruder screen for polymer melts, Filter for use in Centrifuges, Fluid bed driers

• 6.REVERSE DUTCH WOVEN MESH


Aperture: 350 microns and finer

Applications : Filter elements, Leaf filter, Extruder screen for polymer melts, Filter for use in Centrifuges, Fluid bed driers

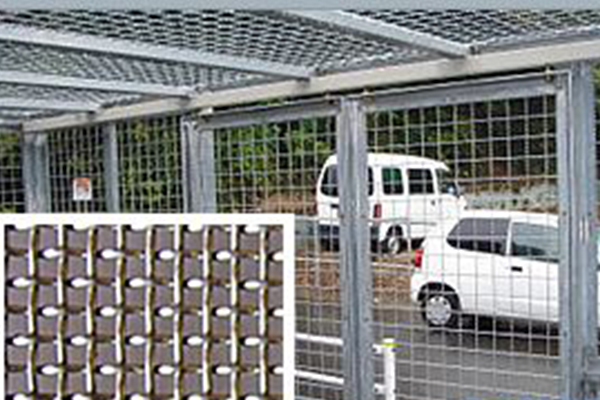

• 7.HERRINGBONE MESH


Aperture: 1.5 mm and finer

Applications :
Architectural Panels,
Conveyor belts,
Facades

• 8.MOLYBDENUM MESH


Applications : Very high temperature applications, Good electrical conductivity applications, Aerospace applications, Nuclear power field, Glass furnaces, Petroleum industry, Oil and Gas industry, Food processing industry, New Energy industry, New display screen industry

• 9.COPPER MESH


Applications : Radio Frequency Shielding Applications, Decorative mesh, lamps Aerospace applications, Sculpture making

• 10.ALUMINUM MESH


Applications : Filter Disc, Air Vent, Lightweight Screening: Aluminum is more than 60% lighter than Steel Electrical substrates and electrodes, Mosquito mesh,Decorative mesh, Architectural mesh applications

• 11.NICKEL MESH


Applications : Fuel Cells, Biosensors / Electrodes, Image Analyzers, UV shielding, Sonic Control, Screen Printing, Chromatography and Spectrometry, CRTs, Chemical Processing Applications – resistance to different chemicals such as acids, alkalis and other corrosive media, Thermal Batteries
